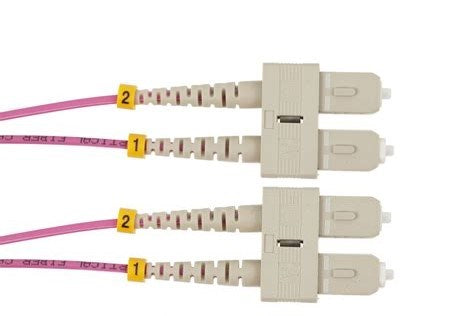

SC-SC 10M MM OM4 Duplex Patch Lead | LSZH

The Grove SC-SC 10M MM OM4 Duplex Patch Lead is a high-performance fiber optic cable designed for high-speed data transmission in enterprise networks, data centers, and telecommunications applications. Built with OM4 multimode fiber, this cable supports data rates of up to 100Gbps over short distances and is ideal for high-bandwidth applications such as cloud computing, virtualization, and storage area networks (SANs).

With SC-SC connectors, the cable ensures reliable and secure connections with low insertion loss and high return loss. The Low Smoke Zero Halogen (LSZH) jacket enhances safety by reducing toxic emissions in case of fire, making it ideal for enclosed spaces and environmentally sensitive installations. The 10-metre length provides flexible deployment options for structured cabling systems.

Key Features:

• 10-metre duplex fiber optic patch lead for high-speed data transmission
• OM4 multimode fiber for superior performance and extended reach
• SC-SC connectors for secure, high-quality connections
• LSZH (Low Smoke Zero Halogen) jacket for enhanced safety in enclosed spaces
• Supports data rates up to 100Gbps over short distances
• Ideal for data centers, cloud computing, SANs, and high-bandwidth applications
• Precision-engineered connectors with low insertion loss

Specifications:

• Cable Type: Fiber optic patch lead
• Fiber Mode: OM4 Multimode
• Connector Type: SC-SC (Standard Connector)
• Cable Length: 10 metres
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Wavelength: 850 nm (primary)
• Insertion Loss: ≤ 0.3 dB
• Return Loss: ≥ 35 dB
• Operating Temperature: -20°C to 70°C
• Storage Temperature: -40°C to 85°C
• Application: Data centers, enterprise networks, cloud computing, SANs, LANs
