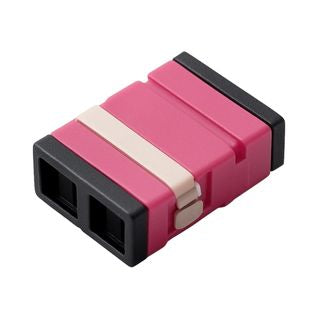

SC MM OM4 Duplex Flangeless Coupler

The SC MM OM4 Duplex Flangeless Coupler is a precision optical coupler designed for high-speed multimode fiber networks. It supports OM4 multimode fibers, enabling superior performance in 40Gbps and 100Gbps Ethernet applications. With its flangeless design, this coupler is perfect for space-constrained installations, making it ideal for data centers, telecommunications, and enterprise networks where high bandwidth and reliability are essential.

Key Features:

• OM4 Multimode Compatibility: Supports 50/125?m OM4 fibers, ensuring high-speed data transmission up to 100Gbps.
• Duplex Design: Connects two fibers simultaneously for efficient network performance.
• Flangeless Construction: Compact design allows easy installation in tight spaces.
• Low Insertion Loss: Ensures minimal signal loss and maintains high network performance.
• Precision Alignment: High-quality alignment sleeves for accurate fiber alignment and stable connections.
• Durable Build: Robust materials ensure long-term reliability and performance.

Specifications:

• Connector Type: SC
• Fiber Type: OM4 Multimode (50/125?m)
• Design: Duplex, flangeless
• Insertion Loss: ? 0.2dB
• Return Loss: ? 30dB
• Material: High-grade plastic with ceramic alignment sleeves
• Operating Temperature: -40?C to +85?C
• Color: Violet (standard OM4 color)
