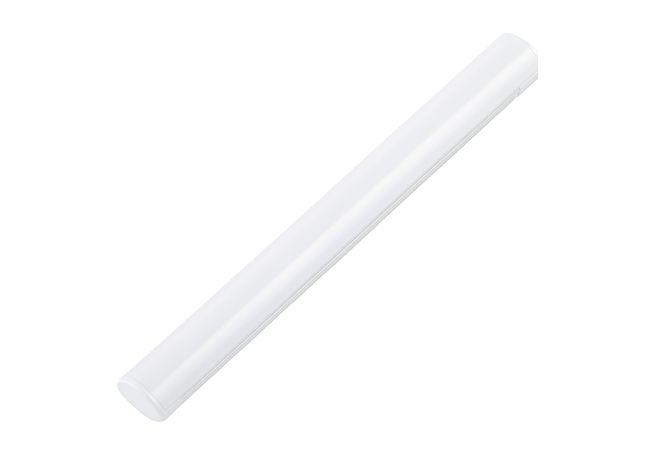

Heat Shrink Splice Protector | 40mm
Heat Shrink Splice Protector | 40mm
The GROVE 40mm Heat Shrink Splice Protector is engineered to provide secure and reliable protection for fibre optic splices. Featuring a stainless-steel strength rod and inner ceramic or EVA sleeve, it ensures high mechanical strength and stable performance while preventing micro-bending. Once heated, the transparent heat-shrink tubing seals and protects the fibre splice, maintaining durability and performance across various environments.
Key Features:
- Reliable Protection: Safeguards fibre splices against mechanical stress and environmental damage.
- Stainless Steel Strength Rod: Ensures rigidity and long-term splice stability.
- Transparent Tubing: Allows easy visual inspection of the splice after installation.
- Micro-Bend Prevention: Maintains optical signal integrity.
- Heat-Shrink Design: Provides a tight, durable seal around splices.
- Standard Size: 40mm length, suitable for most fibre splice trays.
- Easy Installation: Quick application with a standard heat gun.
Specifications:
| Specification | Details |
|---|---|
| Type | Heat shrink fibre splice protector |
| Length | 40mm |
| Outer Tube | Heat-shrink polyolefin, transparent |
| Inner Tube | Ceramic/EVA sleeve for buffering |
| Strength Member | Stainless steel rod |
| Diameter (after shrink) | Approx. 2.5mm |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +85°C |
| Compatibility | Fibre optic splice trays and enclosures |
| Standards | Complies with IEC, TIA/EIA, and Telcordia standards |
