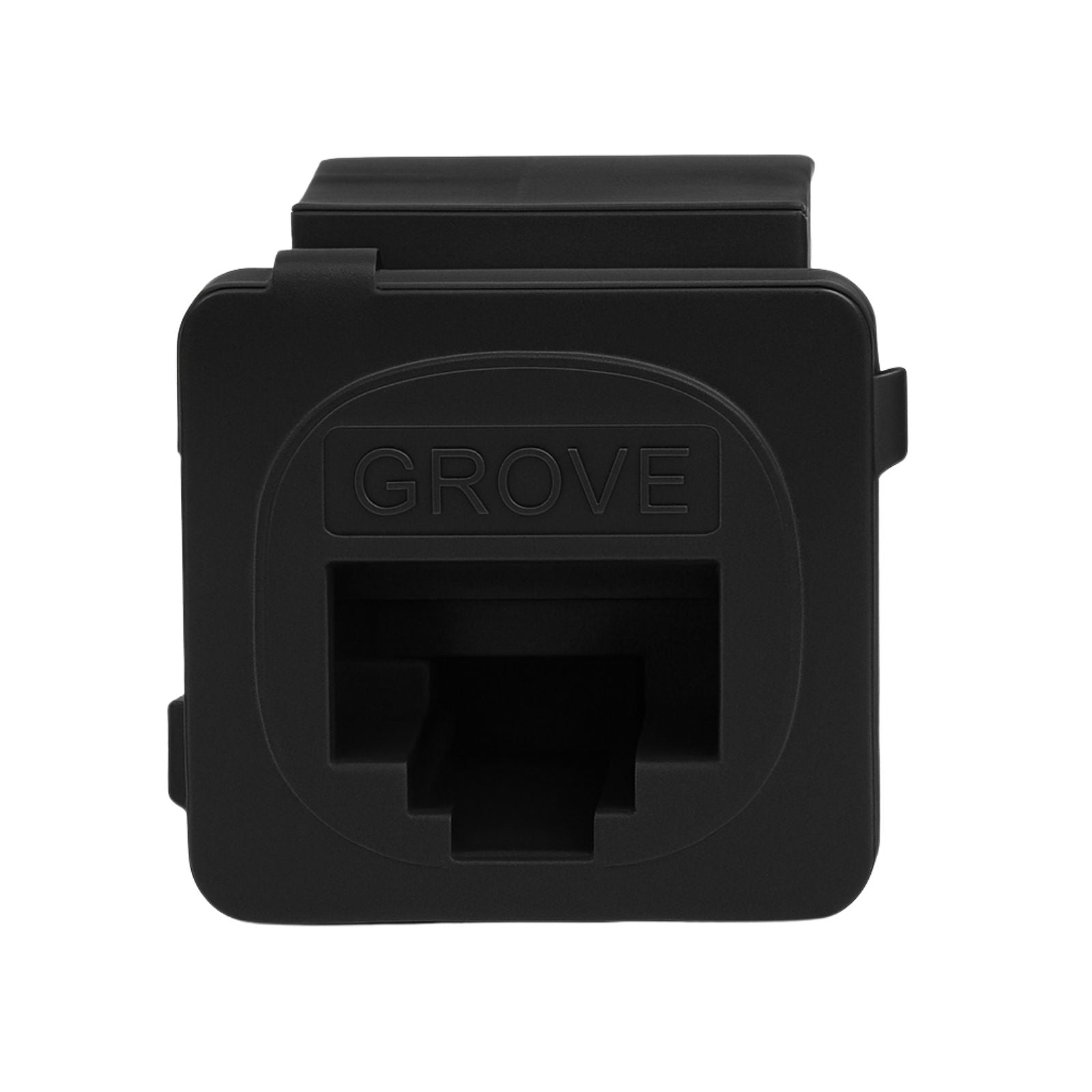

Cat6 Modular Jacks | Bag of 10 | Black

The Grove Cat6 Modular Jack is a high-performance RJ45 UTP jack designed for reliable Ethernet connectivity in structured cabling systems. Engineered with phosphor bronze contacts and gold plating, it ensures stable signal transmission and long service life. Suitable for Cat6 networks supporting up to 10Gbps, this jack is ideal for residential, commercial, and data installations. Supplied in a convenient bag of 10 and finished in white for a clean, professional appearance.

Key Features

• Cat6 compliant for high-speed Ethernet networks
• Supports up to 10GBASE-T applications
• 180-degree modular jack design
• 110 & KRONE IDC termination
• Gold-plated phosphor bronze contacts for low resistance
• Durable polycarbonate housing
• Rated for over 2,000 insertion cycles
• Suitable for 23–28 AWG solid cable
• Supplied as a bag of 10
• Black finish for neat installations

Specifications

• Category: Cat6
• Jack Type: RJ45 UTP Modular Jack
• Termination: 110 & KRONE IDC
• Cable Size: 23–28 AWG solid
• Contact Material: Phosphor bronze with 6–50 μinch gold plating over nickel
• IDC Material: Nickel-plated phosphor bronze (100 μinch)
• Housing Material: Polycarbonate
• PCB: FR-4, UL94V-0
• Current Rating: 1.5 A max
• Dielectric Strength: 1000 V RMS (1 minute)
• Insulation Resistance: ≥500 MΩ
• Contact Resistance: ≤20 mΩ per contact
• Operating Temperature: -20°C to 70°C
• Humidity: 10%–90% non-condensing
• Insertion Life: >2,000 cycles
• Colour: Black

Applications

• 10GBASE-T Ethernet networks
• 1000BASE-T / 1000BASE-TX Gigabit Ethernet
• 100BASE-TX Fast Ethernet
• 10BASE-T Ethernet
• Voice, data, and video installations
• Residential and commercial structured cabling
• Patch panels and network outlets
