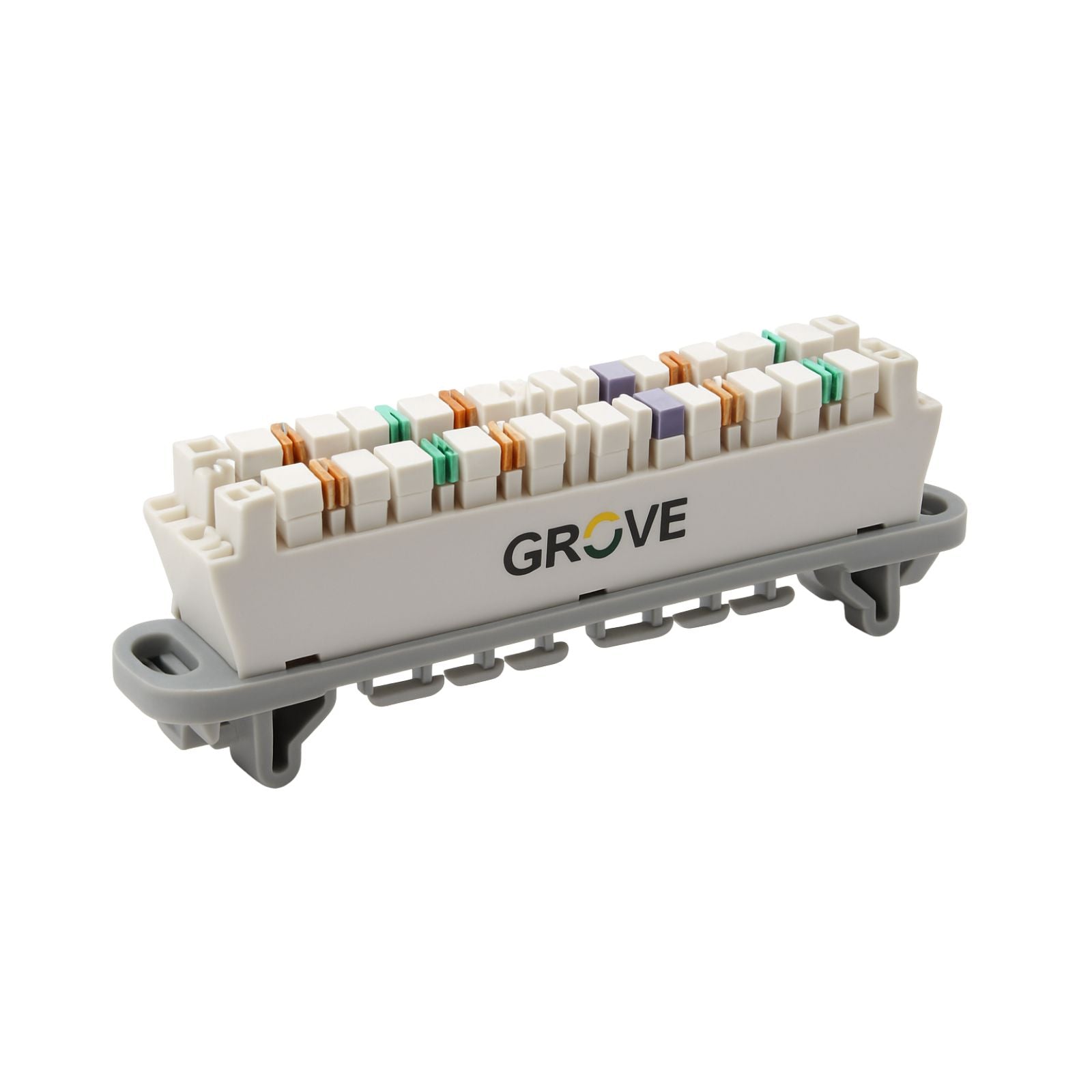

Cat6 8 Pair Consolidation Module

The Grove Cat6 8 Pair Consolidation Module is a reliable, high-performance solution for structured cabling systems, providing a convenient connection point between horizontal cabling and work area outlets. Designed to support Category 6 performance standards, it ensures excellent transmission quality for data, voice, and video applications. With 8-pair IDC termination, this module simplifies cabling distribution, enhances flexibility, and supports moves, adds, and changes (MACs) without disrupting the main network infrastructure. Built with durable housing and engineered for long-lasting use, it is ideal for offices, data centres, and commercial installations requiring efficient network consolidation.

Key Features

• Supports Cat6 performance for high-speed data, voice, and video.
• 8-pair IDC termination for reliable and secure connections.
• Consolidation point between horizontal cabling and outlets.
• Improves flexibility for moves, adds, and changes (MACs).
• Compact and durable design for easy installation.
• Compatible with structured cabling standards (ISO/IEC 11801, ANSI/TIA-568).
• Clear labelling areas for simple cable identification.
• Ideal for commercial buildings, offices, and data centres.

Specifications

• Category: Cat6
• Type: 8 Pair Consolidation Module
• Termination Type: IDC (Insulation Displacement Contact)
• Performance: Supports up to 250 MHz bandwidth
• Housing Material: High-strength plastic with robust IDC contacts
• Dimensions (approx.): 110 mm (L) × 40 mm (W) × 30 mm (H)
• Wiring Scheme: T568A / T568B compliant
• Standards Compliance: ANSI/TIA-568-C.2, ISO/IEC 11801, EN 50173
• Application: Data, voice, and multimedia networks
