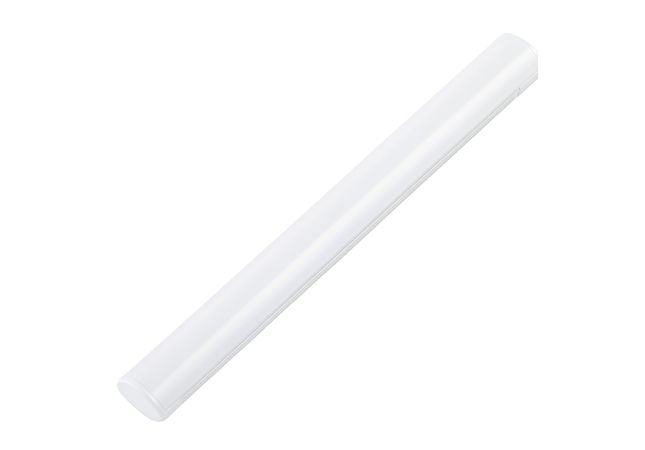

Heat Shrink Splice Protector | 60mm
Heat Shrink Splice Protector | 60mm
The Grove 60mm Heat Shrink Splice Protector delivers superior protection for fibre optic splices in demanding environments. Built with a stainless-steel strength rod and an internal ceramic or EVA sleeve, it prevents fibre bending and ensures long-term splice stability. The transparent heat-shrink outer tubing provides a secure, tight seal while allowing easy inspection of the splice. Its extended 60mm length offers added durability and strength, making it ideal for larger splice enclosures and high-reliability fibre installations.
Key Features:
- Extended Length: 60mm design provides maximum protection and durability.
- High Reliability: Protects fibre splices against bending, dust, and mechanical stress.
- Stainless Steel Strength Rod: Maintains fibre stability and splice integrity.
- Transparent Heat-Shrink Tubing: Enables clear visual splice inspection.
- Micro-Bend Prevention: Supports stable optical transmission.
- Universal Fit: Compatible with standard splice trays and enclosures.
- Easy Application: Quick heat-shrink installation using a standard heat gun.
Specifications:
| Specification | Details |
|---|---|
| Type | Heat shrink fibre splice protector |
| Length | 60mm |
| Outer Tube | Heat-shrink polyolefin, transparent |
| Inner Tube | Ceramic/EVA sleeve for buffering |
| Strength Member | Stainless steel rod |
| Diameter (after shrink) | Approx. 2.5mm |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +85°C |
| Compatibility | Fibre optic splice trays and enclosures |
| Standards | IEC, TIA/EIA, Telcordia compliant |
