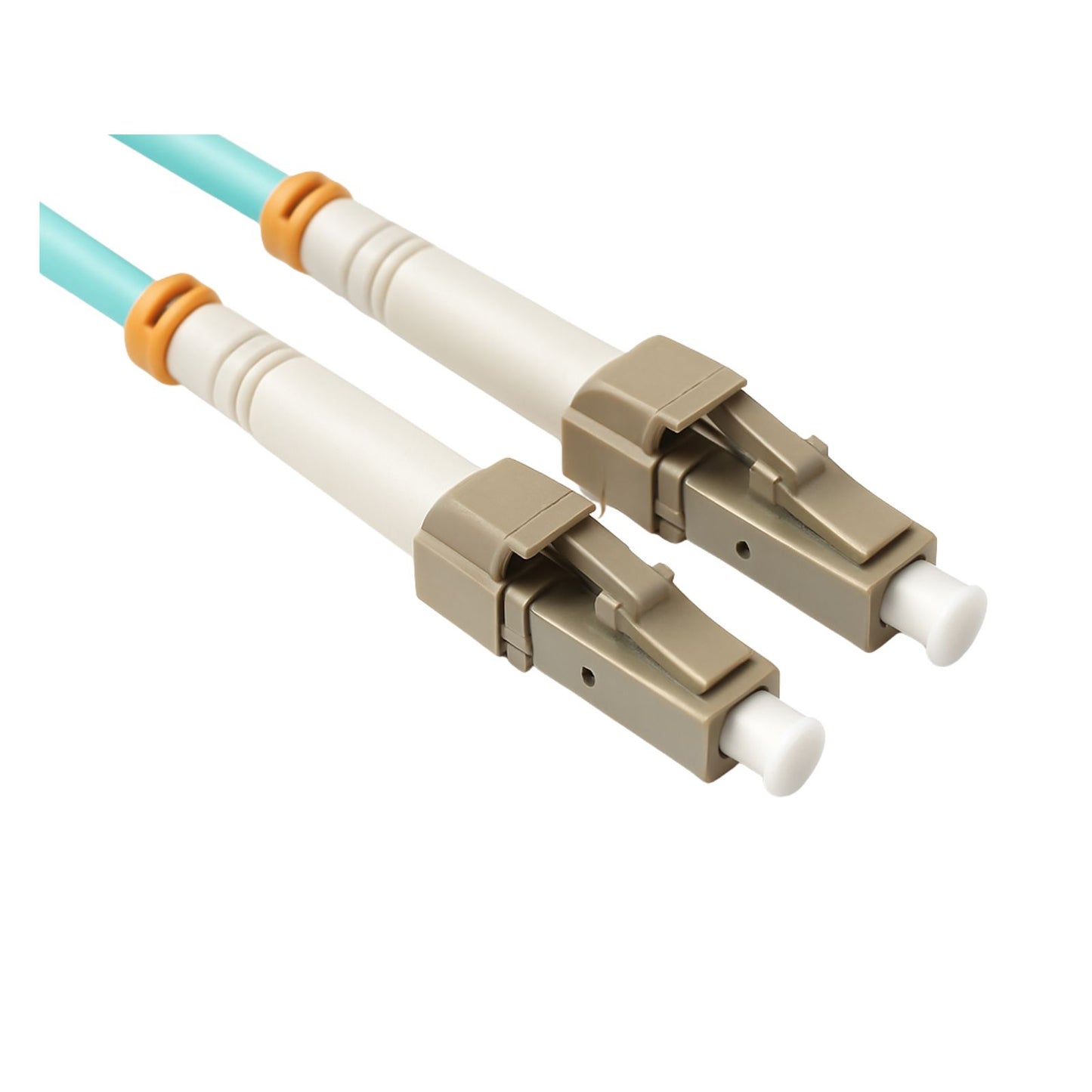

5M LC-LC MM OM3 Duplex Patch Lead | LSZH

The 5-metre LC-LC OM3 Duplex Fibre Optic Patch Lead delivers reliable high-speed data transmission for modern enterprise and telecom networks. Designed with OM3 50/125 µm multimode fibre, this cable is ideal for 10Gbps Ethernet connections up to 300 metres and 40Gbps up to 100 metres, making it a go-to solution for data centres, LANs, SANs, and backbone infrastructure.

This patch lead features LC to LC connectors with precision UPC polishing to minimise insertion loss and maximise return loss. The Low Smoke Zero Halogen (LSZH) outer jacket enhances fire safety by emitting minimal smoke and no halogen gases, making it compliant for use in enclosed and sensitive environments.

Finished in the industry-standard aqua colour, this OM3 duplex fibre cable is ready for high-density network environments where reliability and performance are critical.

Key Features:

• Length: 5 metres
• Connector Type: LC to LC Duplex
• Fibre Type: OM3 multimode 50/125 µm
• Jacket Type: LSZH (Low Smoke Zero Halogen)
• Colour: Aqua (OM3 standard)
• Bandwidth Support:
• 10Gbps up to 300 metres
• 40Gbps up to 100 metres
• Low Insertion Loss and High Return Loss
• Fire-Rated Jacket: IEC 60332-1 compliant
• RoHS Compliant and Halogen-Free
• Applications: Data centres, server rooms, SANs, LANs, telecoms

Specifications:

• Fibre Core: OM3 50/125 µm multimode
• Connector Ends: LC male to LC male (Duplex)
• Jacket Material: LSZH
• Cable Diameter: 2.0 mm x 2
• Insertion Loss: ≤ 0.3 dB
• Return Loss: ≥ 30 dB
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Minimum Bend Radius: 30 mm (installation), 15 mm (operation)
• Compliance: ISO/IEC 11801, TIA/EIA-568, RoHS
