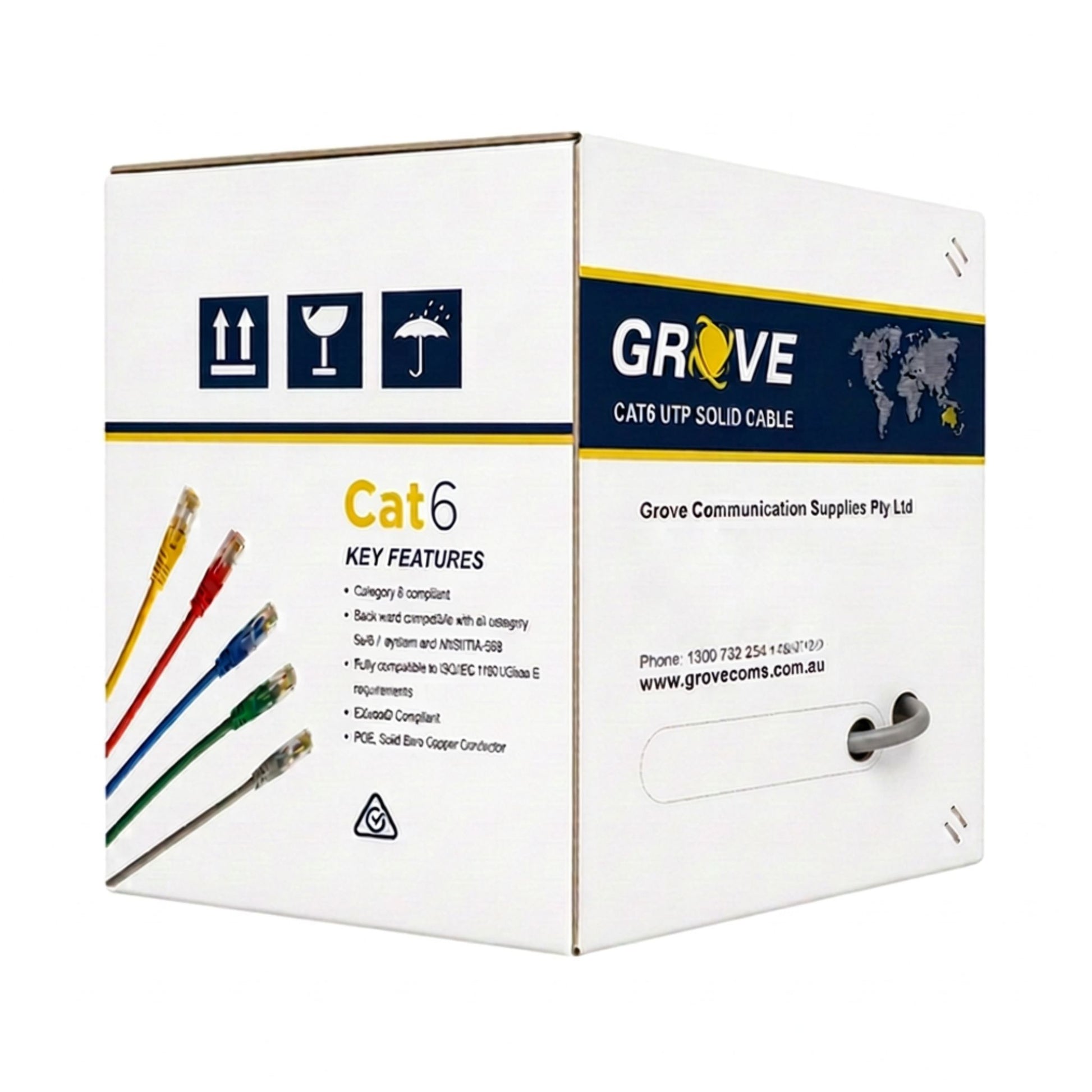

4 Pair UTP Cat6 Cable Box 305Mtr | Grey

SKU: AS-GN0002

The Grove 4 Pair UTP Cat6 Cable Box 305Mtr | Grey is designed for reliable high-speed data transmission in structured cabling systems. With a bandwidth of 250 MHz and support for speeds up to 1 Gbps, this Cat6 cable is ideal for Ethernet, VoIP, CCTV, and general network applications. Built with 23AWG solid bare copper conductors and four precision-twisted pairs, it reduces crosstalk and enhances signal integrity. The durable grey PVC jacket ensures flexibility and protection, while the 305-metre pull box packaging allows smooth, tangle-free installation, making it suitable for both professional and residential projects.

Key Features

• Category 6 UTP cable supporting up to 1 Gbps
• 250 MHz bandwidth for stable, high-speed data transfer
• 4 twisted pairs of 23AWG solid copper conductors
• Grey PVC sheath for durability and identification
• Packaged in a 305-metre pull box for easy installation
• Reduces crosstalk for enhanced signal quality
• Compliant with ISO/IEC 11801, EN 50173, ANSI/TIA-568.2-D
• Suitable for commercial, enterprise, and residential cabling

Specifications

• Category: Cat6 UTP
• Length: 305 m
• Conductor: 23AWG solid bare copper
• Pairs: 4 twisted pairs
• Bandwidth: 250 MHz
• Data Rate: Up to 1 Gbps
• Sheath Material: PVC
• Outer Diameter: Approx. 6.5 mm
• Colour: Grey
• Compliance: ISO/IEC 11801, EN 50173, ANSI/TIA-568.2-D, RoHS
• Packaging: Pull box for tangle-free installation

Applications

• Local Area Networks (LANs)
• Ethernet and Gigabit Ethernet connections
• VoIP and IP telephony systems
• Video surveillance (CCTV)
• Structured cabling in offices and residential properties
• Data transfer in commercial and enterprise networks
