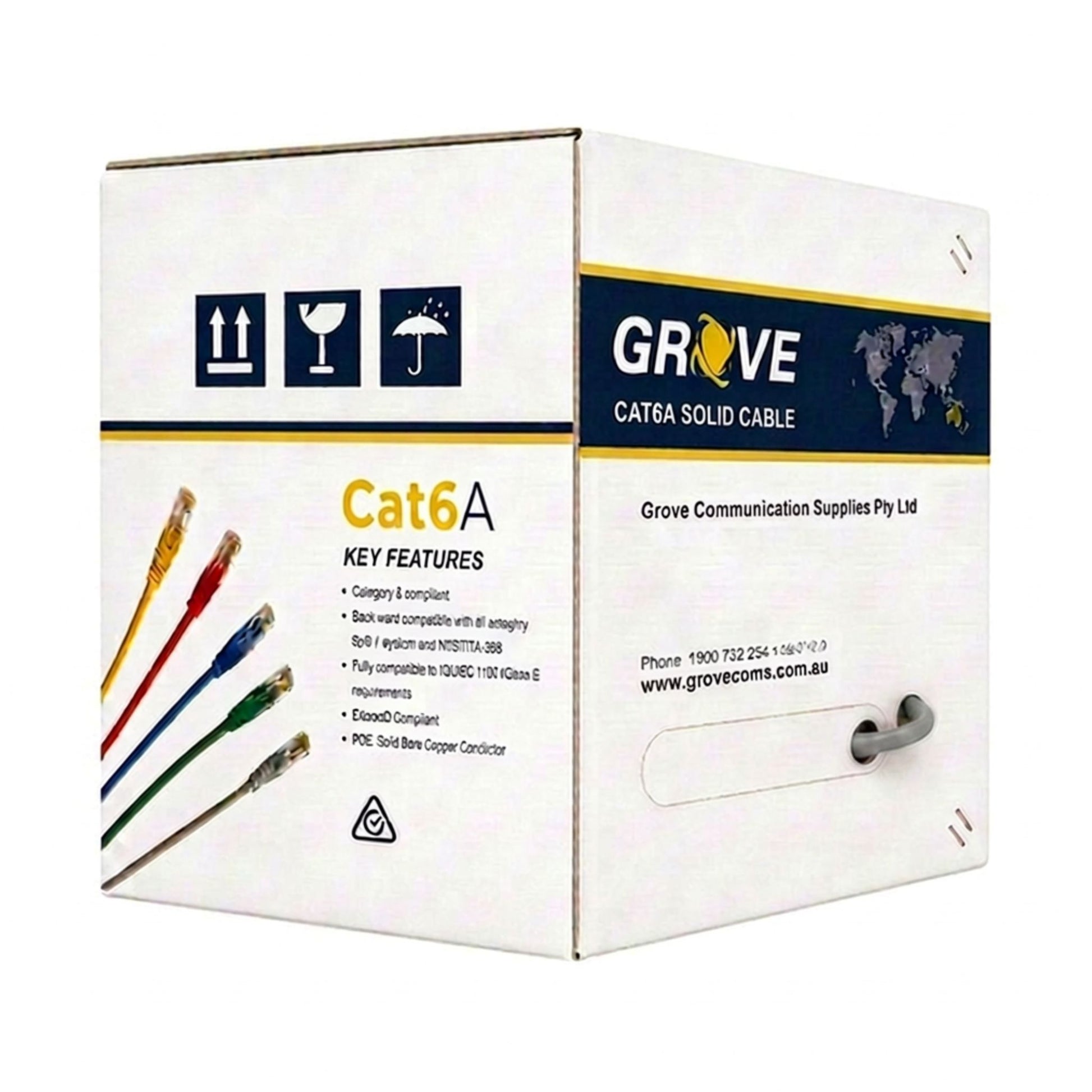

4 Pair U/FTP LSZH Cat6A Cable Box 305Mtr | Grey

SKU: AS-GN0006

The Grove 4 Pair U/FTP LSZH Cat6A Cable Box 305Mtr | Grey is a premium networking cable designed for high-performance data transmission in enterprise and commercial environments. Featuring individually foil-shielded twisted pairs (U/FTP), this Cat6A cable minimises crosstalk and electromagnetic interference, delivering superior performance for 10 Gigabit Ethernet applications. With a bandwidth of 500 MHz, 23AWG solid copper conductors, and a Low Smoke Zero Halogen (LSZH) jacket, it provides reliable connectivity and enhanced fire safety. Supplied in a 305-metre pull box, it ensures smooth, tangle-free installation, making it an excellent choice for data centres, structured cabling, and mission-critical networks.

Key Features

• Category 6A U/FTP cable with individual foil shielding for reduced interference
• Supports 10 Gbps data transmission with 500 MHz bandwidth
• 23AWG solid bare copper conductors for maximum performance
• LSZH jacket reduces toxic smoke and halogen emissions in case of fire
• Grey outer sheath for easy identification
• Packaged in a 305-metre pull box for professional installation
• Standards compliant: ISO/IEC 11801, EN 50173, ANSI/TIA-568.2-D
• Designed for data-intensive enterprise and commercial networks

Specifications

• Category: Cat6A U/FTP
• Length: 305 m
• Conductor: 23AWG solid bare copper
• Pairs: 4 twisted pairs, individually foil shielded
• Bandwidth: 500 MHz
• Data Rate: Up to 10 Gbps
• Sheath Material: LSZH (Low Smoke Zero Halogen)
• Outer Diameter: Approx. 7.5 mm
• Colour: Grey
• Compliance: ISO/IEC 11801, EN 50173, ANSI/TIA-568.2-D, RoHS
• Packaging: Pull box for tangle-free installation

Applications

• Data centres and server farms requiring high-speed cabling
• Enterprise and commercial structured cabling networks
• Backbone connections supporting 10 Gigabit Ethernet
• VoIP, IP surveillance, and video conferencing systems
• High-density office and smart building cabling
• Installations where fire safety and low-smoke emissions are critical

View Data Sheet
