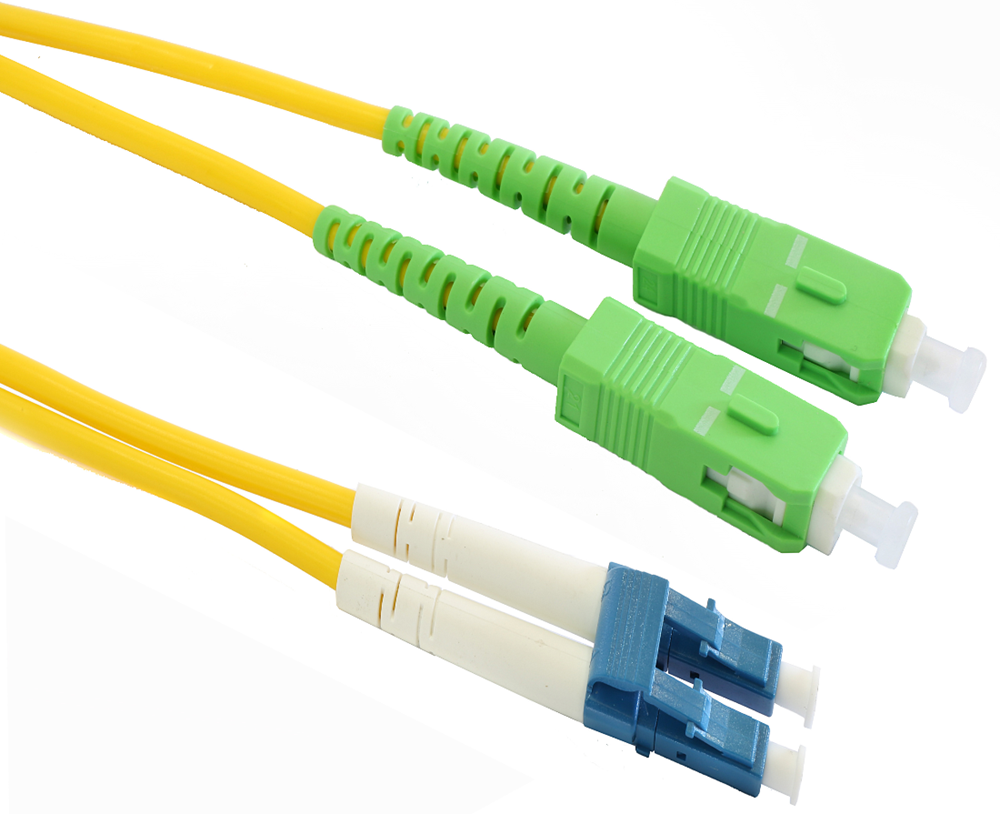

3M SCA-LC OS1/OS2 Duplex Patch Lead

The Grove 3M SCA-LC OS1/OS2 Duplex Patch Lead is a high-performance fiber optic cable designed for single-mode OS1/OS2 networks, offering exceptional data transmission over long distances. With a 3-meter length, this duplex patch lead features SCA (Subscriber Connector Adapter) and LC (Lucent Connector) connectors, ensuring secure and stable connections for various networking and telecommunications applications. The OS1/OS2 single-mode fiber provides low signal loss, enabling reliable high-speed data transfer in enterprise, telecom, and data center environments. This patch lead is ideal for high-performance applications that require long-distance connectivity, such as 10G, 40G, and 100G Ethernet.

Key Features

• Brand: Grove
• Length: 3 meters, perfect for flexible network installations in various environments.
• Fiber Type: OS1/OS2 single-mode (9/125 µm) for long-range, high-speed data transmission with low loss.
• Connectors: SCA to LC for reliable and secure fiber optic connections.
• Cable Design: Duplex configuration for bidirectional data transfer.
• Performance: Supports up to 10Gbps, 40Gbps, and 100Gbps Ethernet with low insertion loss and excellent return loss.
• Applications: Ideal for 10G, 40G, and 100G Ethernet, telecommunications, data centers, and enterprise networks.

Specifications

• Cable Length: 3 meters
• Fiber Type: OS1/OS2 single-mode (9/125 µm)
• Connector Type: SCA to LC
• Cable Type: Duplex
• Insertion Loss: ≤ 0.2 dB
• Return Loss: ≥ 50 dB
• Operating Temperature: -20°C to 70°C
• Standards Compliance: ITU-T G.652.D, IEC 60332-1
