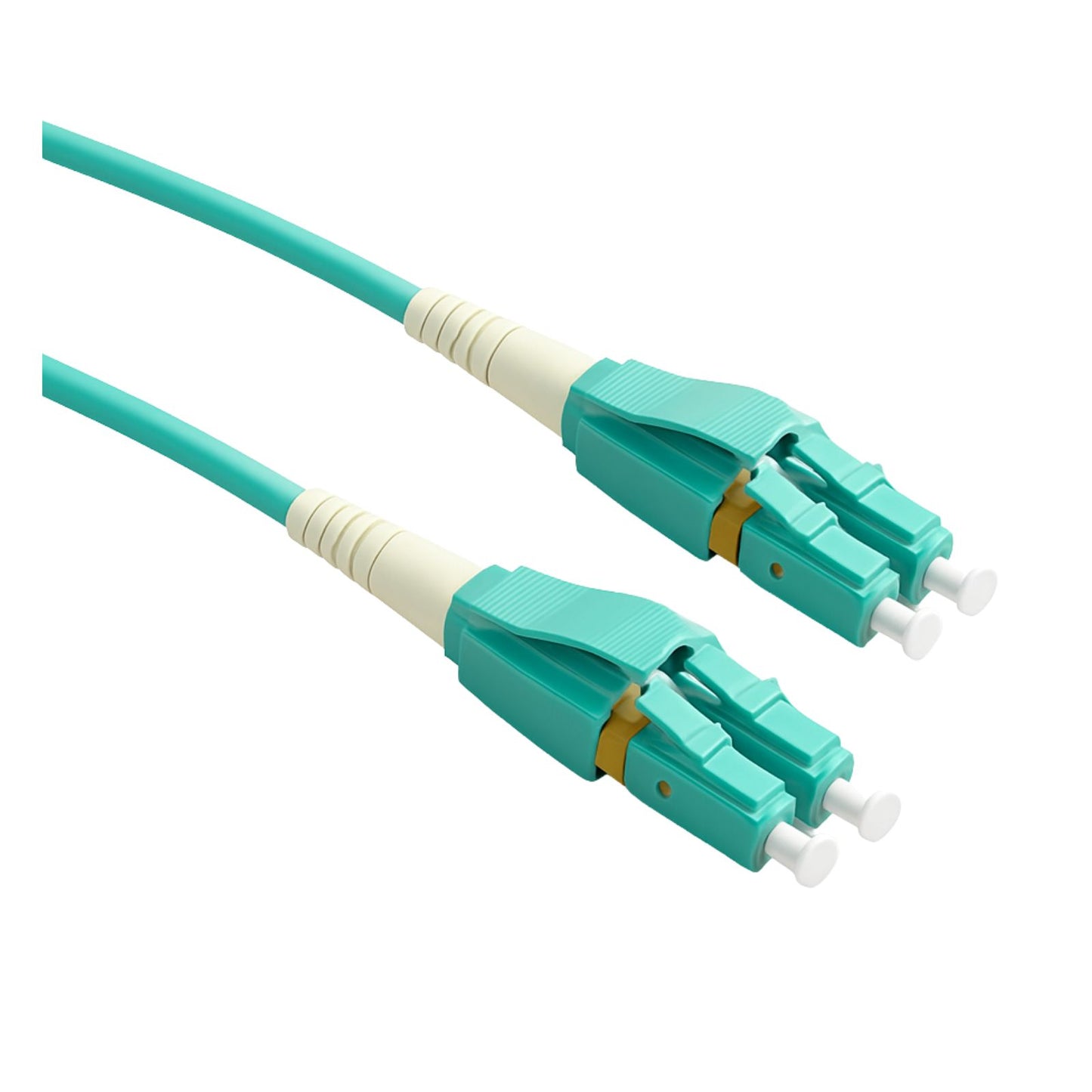

3M LC-LC MM OM4 Duplex Uniboot Patch Lead

The GROVE LC-LC 3M MM OM4 Duplex Uniboot Patch Lead is a compact, high-performance fiber optic cable designed for fast and efficient data transmission. Constructed with OM4 multimode fiber, this patch lead ensures low signal loss and supports high-speed applications, including 10G, 40G, and 100G Ethernet. Its duplex uniboot design combines two fibers into a single connector, reducing cable clutter and optimizing space in tight installations. The 3-meter length is perfect for short-distance connections, making it an excellent choice for data centers, server rooms, and enterprise networks.

Key Features:

• OM4 Multimode Fiber: Enables high-speed data transfer with minimal attenuation.
• Compact 3-Meter Length: Ideal for short-distance, space-efficient connections.
• Duplex Uniboot Design: Combines two fibers into a single connector for reduced cable clutter.
• LC-LC Connectors: Ensures secure and reliable duplex communication.
• High Bandwidth Capability: Supports 10G, 40G, and 100G Ethernet applications.
• Durable and Flexible: Designed for easy handling and reliable long-term use.

Specifications:

• Fiber Type: Multimode OM4
• Cable Length: 3 meters
• Connector Type: LC-LC (Duplex Uniboot)
• Core/Cladding Diameter: 50/125 µm
• Insertion Loss: ≤ 0.3 dB
• Return Loss: ≥ 30 dB
• Operating Temperature: -20°C to +70°C
• Outer Jacket Material: Low Smoke Zero Halogen (LSZH)
• Color: Aqua
