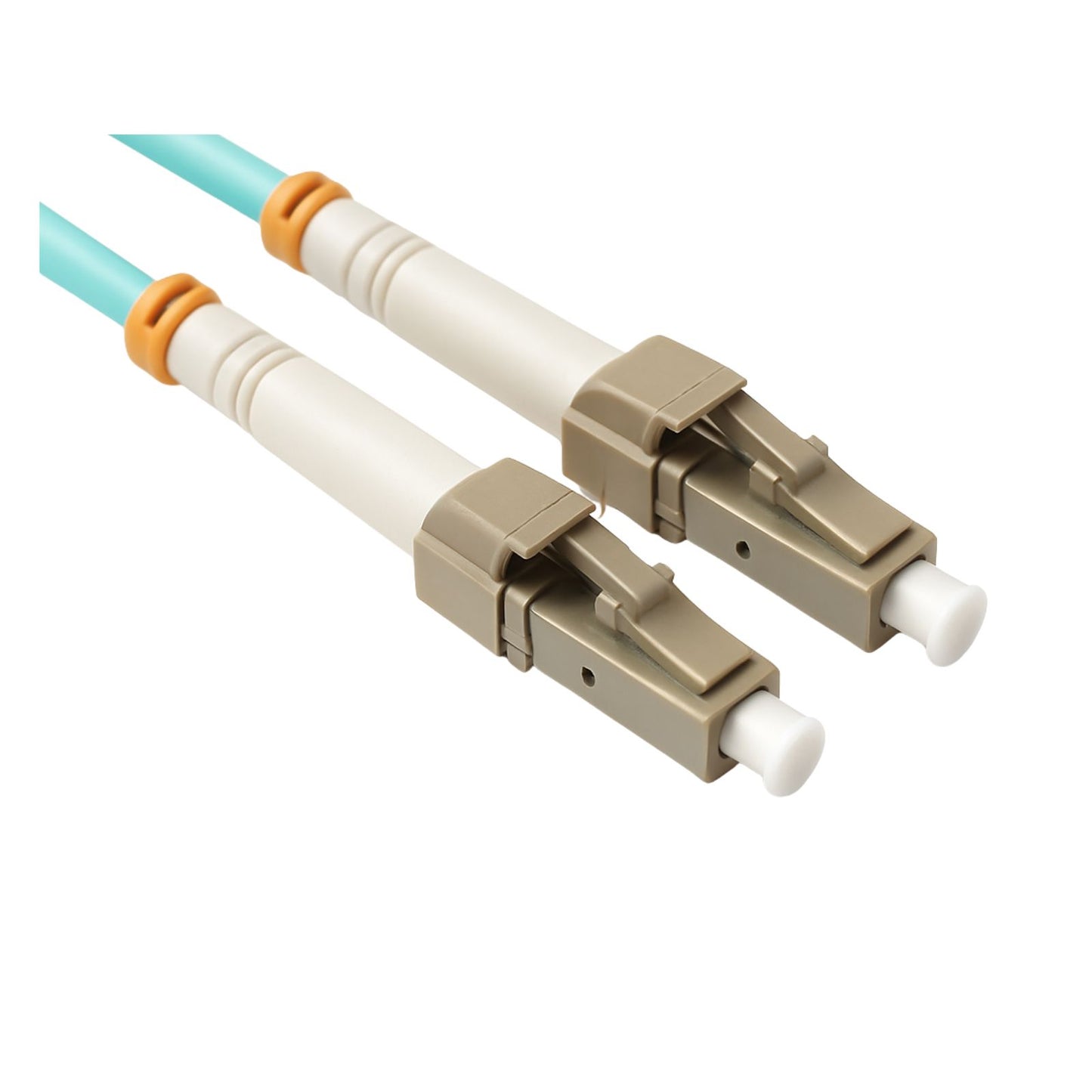

3M LC-LC MM OM3 Duplex Patch Lead | LSZH

The 3M LC-LC OM3 Duplex Fibre Optic Patch Lead is engineered for high-speed, high-bandwidth data transmission, making it ideal for modern data centres, enterprise backbones, server rooms, and telecommunications networks.

This 3-metre duplex patch lead features LC connectors on both ends and is constructed with OM3 50/125 µm multimode fibre, capable of supporting 10Gbps Ethernet up to 300 metres and 40Gbps Ethernet up to 100 metres.

The Low Smoke Zero Halogen (LSZH) outer jacket enhances fire safety by emitting minimal smoke and zero halogen when exposed to high heat or fire, reducing the risk of toxic exposure in enclosed environments such as buildings and tunnels.

With an aqua-coloured sheath to signify OM3 compatibility, this cable delivers consistent low insertion loss and high return loss for optimal signal performance in demanding network environments.

Key Features:

• Connector Type: LC to LC Duplex
• Fibre Type: OM3 multimode 50/125 µm
• Cable Length: 3 metres
• Jacket Type: LSZH (Low Smoke Zero Halogen)
• Colour: Aqua (OM3 standard)
• Bandwidth: Up to 10Gbps at 300 metres; 40Gbps at 100 metres
• Flame Rating: IEC 60332-1 compliant
• Applications: Data centres, LANs, SANs, telecoms, server rooms
• Environmentally Safe: RoHS compliant, halogen-free
• Connector Polish: UPC (Ultra Physical Contact)

Specifications:

• Connector Ends: LC male to LC male (Duplex)
• Fibre Core: OM3 multimode 50/125 µm
• Jacket Diameter: 2.0 mm x 2 (zipcord construction)
• Insertion Loss: ≤ 0.3 dB
• Return Loss: ≥ 30 dB
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Cable Standard: ISO/IEC 11801, TIA/EIA-568
• Minimum Bend Radius: 30 mm (installation), 15 mm (operation)
