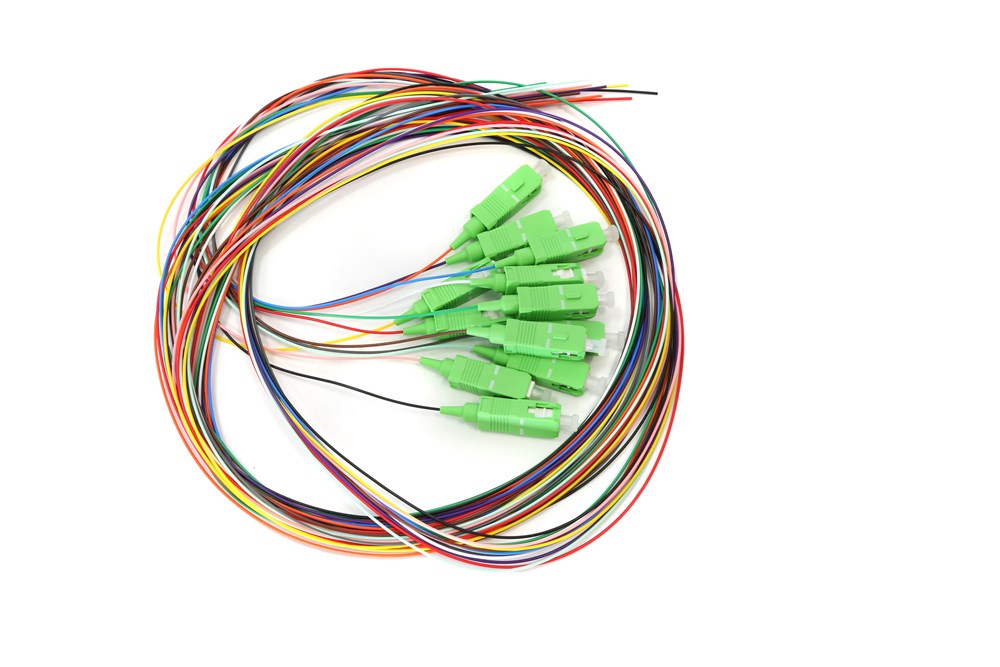

2M SCA SM OS1/OS2 Pigtails | Pack 12

The GROVE 2M SCA SM OS1/OS2 Pigtails (Pack of 12) are high-quality single-mode fiber optic cables designed for precise and reliable network connections. Each pigtail features SCA (Angled Physical Contact) connectors to ensure minimal signal loss and reduced back reflections. These pigtails support both OS1 and OS2 fiber standards, making them suitable for various high-speed data applications, including telecommunications, data centers, and enterprise networks.

Key Features:

• Connector Type: SCA (Angled SC)
• Length: 2 meters per pigtail
• Fiber Type: Single-mode
• Fiber Standard: OS1/OS2 compatible
• Polish Type: Angled Physical Contact (APC) for reduced reflection
• Application: High-speed data transmission in telecommunication and network environments
• Packaging: Comes in a pack of 12 pigtails
• Durability: Built to withstand harsh environments

Specifications:

• Cable Length: 2 meters per pigtail
• Connector Type: SCA (Angled SC)
• Fiber Type: Single-mode
• Fiber Standards: OS1/OS2 (supporting up to 10km for OS1 and up to 40km for OS2)
• Insertion Loss: ? 0.3 dB
• Return Loss: ? 60 dB
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Operating Temperature: -20?C to 70?C
• Storage Temperature: -40?C to 85?C
