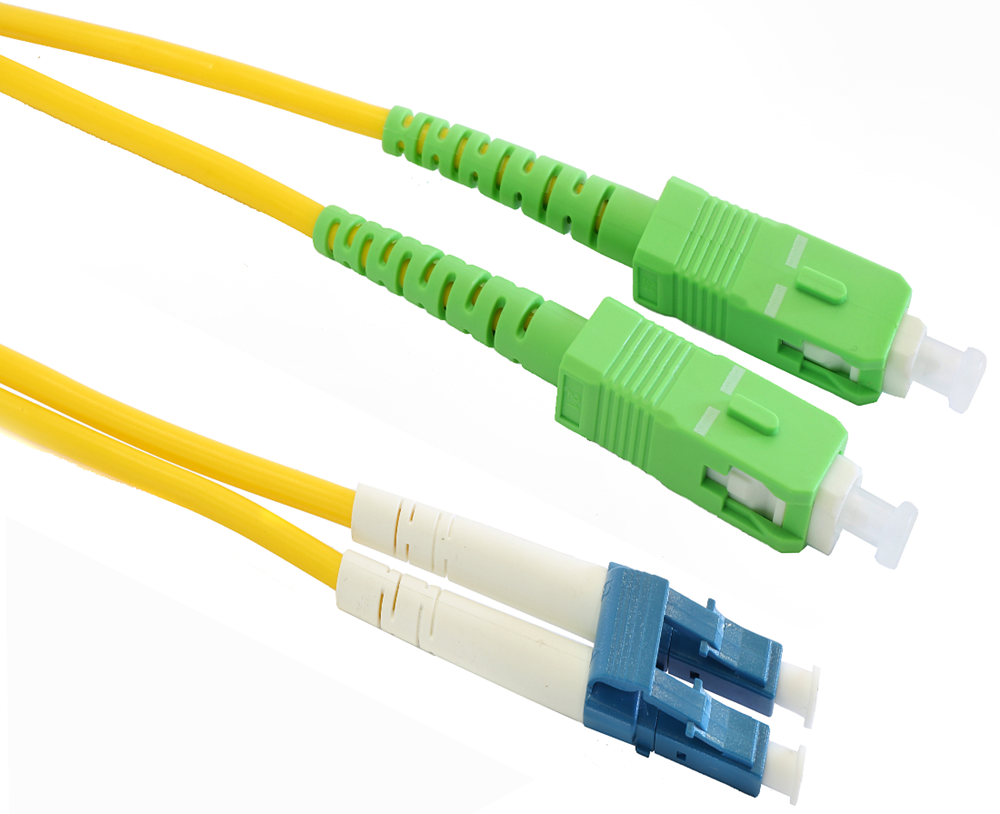

2M SCA-LC OS1/OS2 Duplex Patch Lead | LSZH

The Grove 2M SCA-LC OS1/OS2 Duplex Patch Lead | LSZH is a high-quality fiber optic cable tailored for precise and efficient data transmission in single-mode applications. Designed with SCA (Angled Polished) and LC connectors, this 2-meter duplex cable minimizes insertion loss and ensures superior return loss for reliable performance in high-speed networks. Its LSZH (Low Smoke Zero Halogen) jacket enhances safety by reducing toxic emissions, making it ideal for data centers, enterprise networks, and telecom environments. With OS1/OS2 compatibility, it supports long-distance communication and high-bandwidth demands, including 10G, 40G, and 100G Ethernet networks.

Key Features

• Brand: Grove
• Length: 2 meters, perfect for versatile deployments.
• Fiber Type: OS1/OS2 single-mode for long-distance and high-speed connections.
• Connectors: SCA (Angled Polished) to LC for low-loss, high-precision connections.
• Cable Type: Duplex for simultaneous bidirectional data transfer.
• Jacket Material: LSZH for enhanced fire safety and minimal smoke emissions.
• Performance: Ultra-low insertion loss and high return loss for consistent signal quality.
• Applications: Suitable for data centers, enterprise networks, and telecommunications.

Specifications

• Cable Length: 2 meters
• Fiber Type: OS1/OS2 single-mode
• Connector Type: SCA to LC
• Cable Type: Duplex
• Insertion Loss: ≤ 0.2 dB
• Return Loss: ≥ 60 dB (SCA)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Operating Temperature: -20°C to 70°C
• Standards Compliance: ITU-T G.652.D, IEC 60332-1
