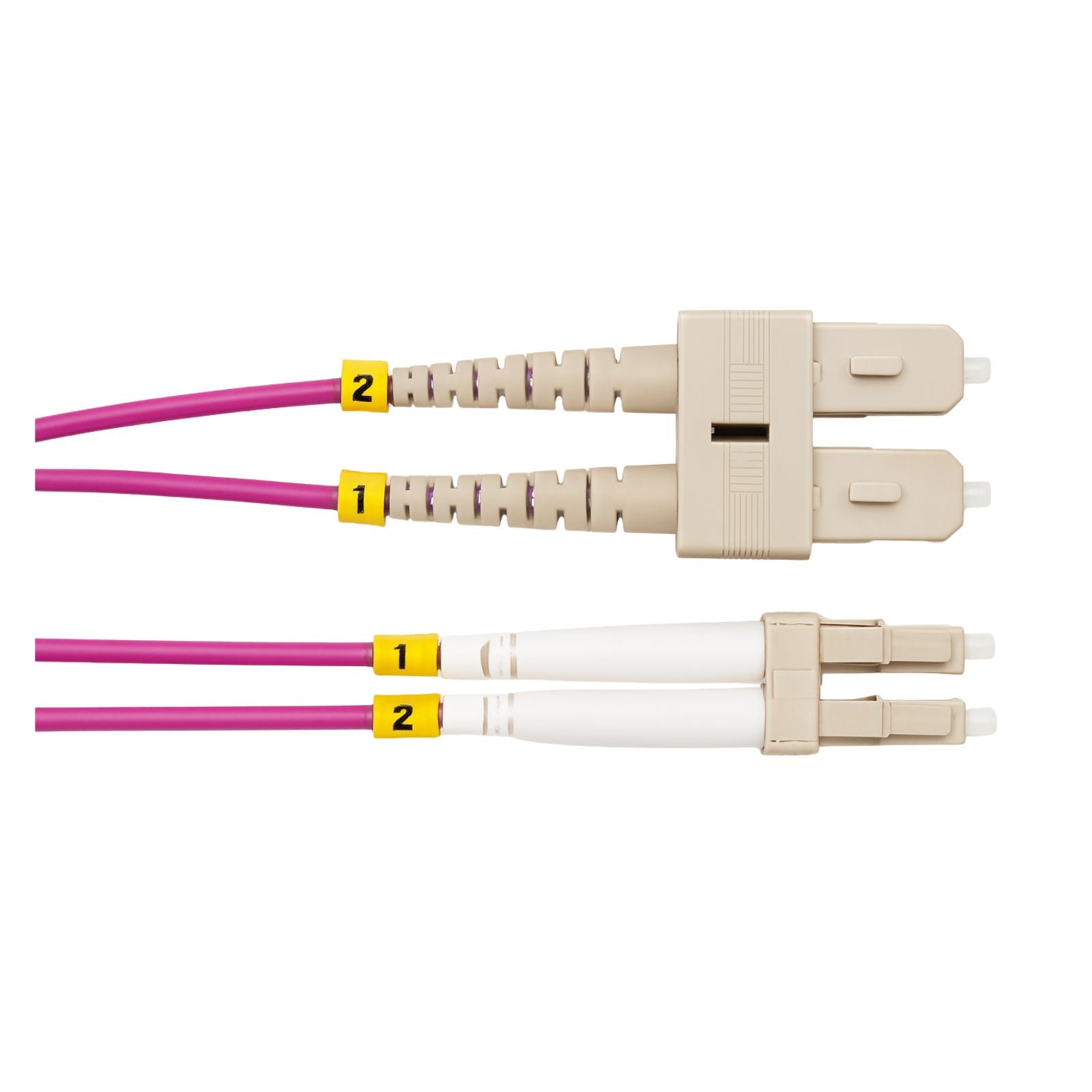

2M SC-LC MM OM4 Duplex Patch Lead | LSZH
2M SC-LC MM OM4 Duplex Patch Lead | LSZH
The SC-LC 2M MM OM4 Duplex Patch Lead is engineered for high-performance multimode fibre networks, ensuring fast and reliable data transfer over short-to-medium distances. With SC to LC connectors and OM4 multimode fibre, this duplex patch cord supports 10Gb, 40Gb, and 100Gb Ethernet applications. The 2-metre length makes it suitable for flexible equipment interconnections within data centres, server rooms, and telecommunications racks. Its LSZH (Low Smoke Zero Halogen) jacket improves safety by reducing harmful emissions in the event of fire, making it ideal for modern enterprise environments.
Key Features:
- OM4 Multimode Fibre: High bandwidth for ultra-fast transmission.
- SC to LC Duplex Connectors: Ensures compatibility with MM fibre networks.
- Supports 10/40/100Gb Ethernet: Future-ready for high-speed applications.
- Low Insertion Loss: High-quality connectors for dependable signal integrity.
- LSZH Jacket: Enhances fire safety with reduced smoke and halogen output.
- 2 Metre Length: Ideal for rack-to-rack and patch panel connections.
- International Standards Compliant: Meets IEC, ISO/IEC, and TIA/EIA fibre optic requirements.
Specifications:
| Specification | Details |
|---|---|
| Fibre Type | Multimode OM4 |
| Connector Type | SC to LC |
| Polish Type | UPC (Ultra Physical Contact) |
| Configuration | Duplex |
| Jacket Material | LSZH (Low Smoke Zero Halogen) |
| Length | 2 metres |
| Insertion Loss | ≤0.3 dB typical |
| Return Loss | ≥20 dB |
| Bandwidth | Up to 4700 MHz·km |
| Ethernet Support | 10Gb, 40Gb, 100Gb |
| Operating Temperature | -20°C to +70°C |
| Compliance Standards | IEC 61754, TIA/EIA 568, ISO/IEC 11801 |
