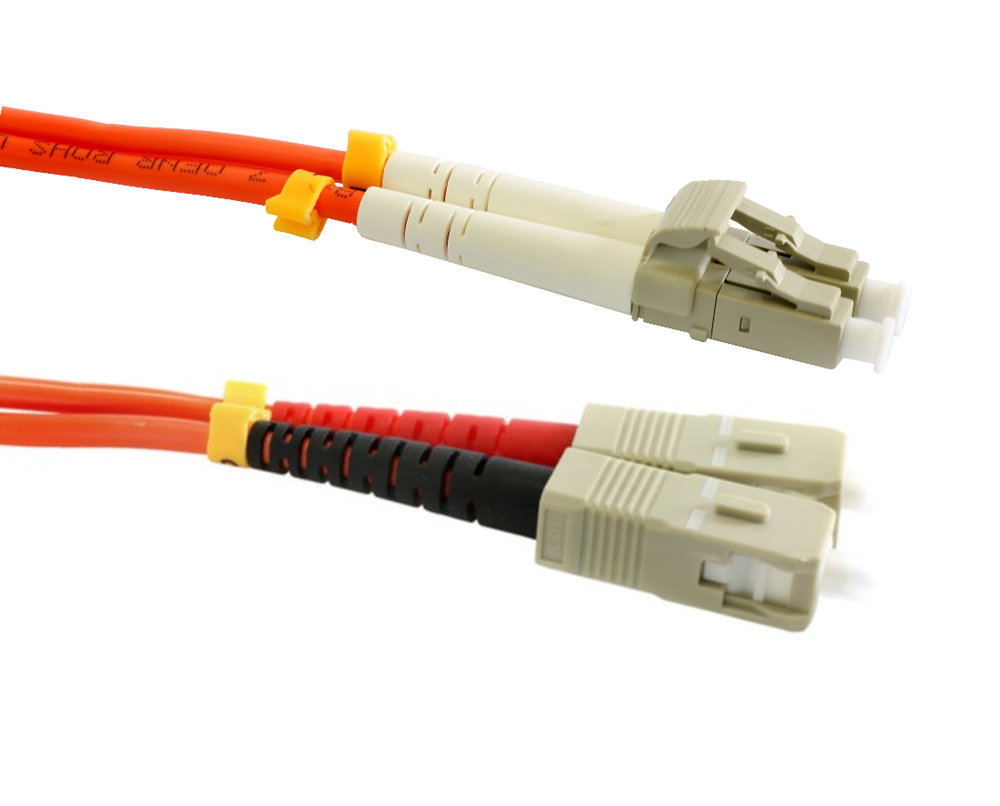

20M SC-LC OM1 MM Duplex Patch Lead

The 20M SC-LC OM1 Duplex Patch Lead is a versatile fiber optic cable designed for medium-distance connections between SC and LC connectors. Supporting OM1 multimode fiber (62.5/125μm), this patch lead is ideal for use in data centers, telecommunications rooms, and network installations. The 20-meter length provides ample reach for various setups, ensuring efficient cable management and maintaining high performance over moderate distances.

Key Features:

1. OM1 Multimode Fiber: Utilizes 62.5/125μm multimode fiber, supporting data rates up to 1 Gb/s over medium distances.
2. SC to LC Connectors: Features SC (Subscriber Connector) on one end and LC (Lucent Connector) on the other for versatile and high-density connections.
3. 20-Meter Length: Offers extended reach for medium-distance connections, reducing the need for additional patch cables and accommodating various installation needs.
4. Durable Construction: Includes a flexible and robust jacket that protects the fiber and allows for easy routing and installation.
5. Low Insertion Loss: Designed to ensure minimal signal loss, maintaining high performance and reliable data transmission.
6. Color-Coded Orange Jacket: Standard OM1 color for easy identification and organization within network environments.

Specifications:

• Fiber Type: OM1 Multimode (62.5/125μm)
• Connector Type: SC-LC Duplex
• Cable Length: 20 meters (approximately 65.6 feet)
• Insertion Loss: Typically <0.3 dB
• Jacket Material: PVC or LSZH (Low Smoke Zero Halogen), depending on requirements
• Jacket Color: Orange
• Operating Temperature: -20°C to +70°C (-4°F to +158°F)
• Polish Type: UPC (Ultra Physical Contact)
• Compatibility: Suitable for use with multimode networking equipment and devices
