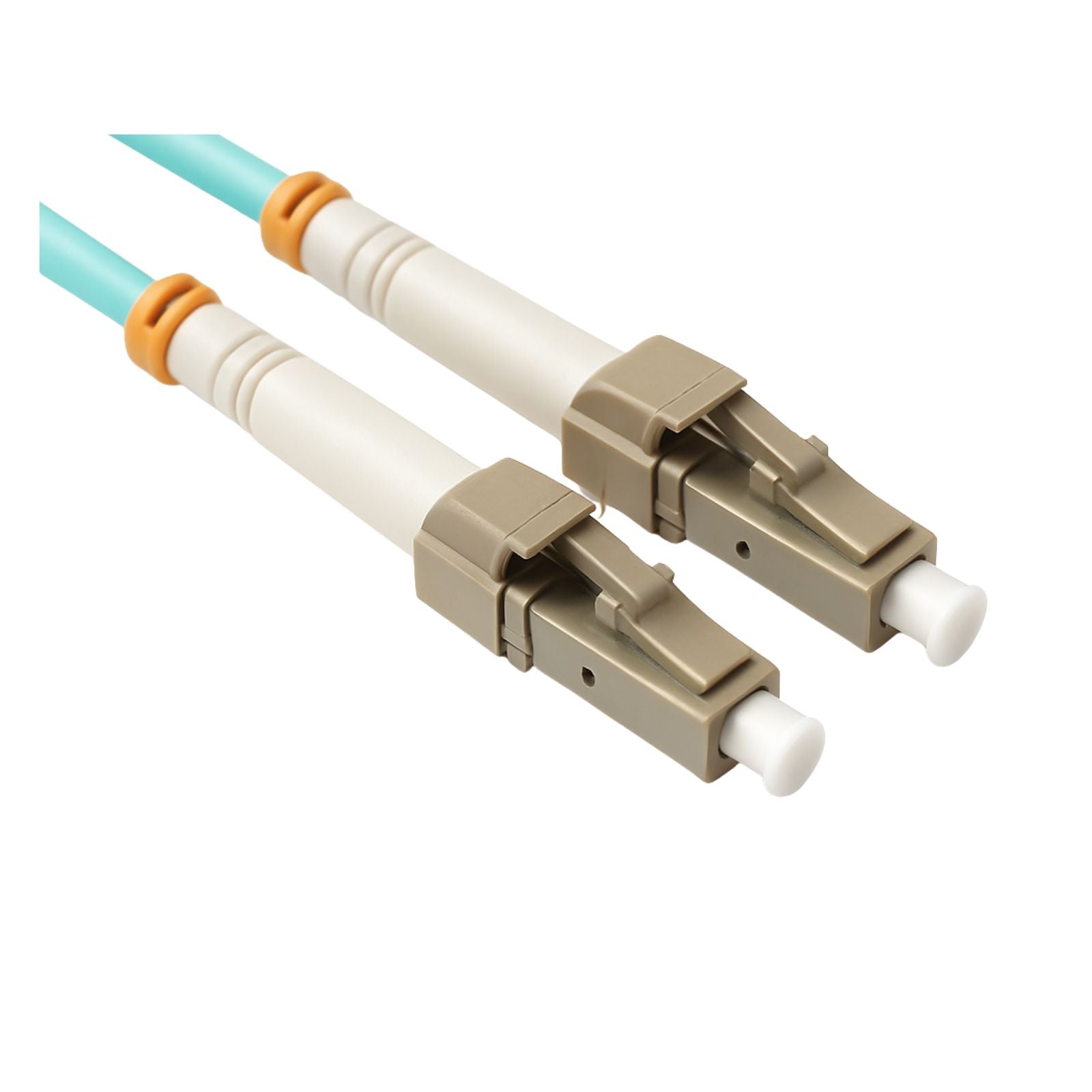

20M LC-LC MM OM3 Duplex Patch Lead | LSZH

The 20-metre LC-LC OM3 Duplex Fibre Optic Patch Lead is designed for demanding, high-performance network environments requiring speed, safety, and signal integrity. Constructed with OM3 50/125 µm multimode fibre, it supports 10Gbps Ethernet up to 300 metres and 40Gbps up to 100 metres, making it ideal for use in data centres, backbone networks, SANs, and telecom rooms.

Fitted with LC to LC duplex connectors and precision-polished UPC ferrules, this patch lead ensures low insertion loss and stable return loss for consistent performance. Its LSZH (Low Smoke Zero Halogen) jacket enhances fire safety, emitting minimal smoke and zero toxic halogens in case of fire, ensuring compliance with safety regulations in enclosed or populated spaces.

This aqua-coloured cable provides a quick visual reference for OM3 classification, aiding cable identification in dense network setups.

Key Features:

• Length: 20 metres
• Connector Type: LC to LC Duplex
• Fibre Type: OM3 multimode 50/125 µm
• Jacket Type: LSZH (Low Smoke Zero Halogen)
• Colour: Aqua (standard for OM3)
• Bandwidth Capability:
• 10Gbps up to 300 metres
• 40Gbps up to 100 metres
• Flame-Retardant & Halogen-Free Jacket
• Low Insertion Loss and High Return Loss
• RoHS and IEC 60332-1 Compliant
• Ideal For: Long runs in data centres, enterprise LANs, SANs, telecom closets

Specifications:

• Connector Ends: LC male to LC male (Duplex)
• Fibre Core: OM3 50/125 µm multimode
• Insertion Loss: ≤ 0.3 dB
• Return Loss: ≥ 30 dB
• Cable Jacket: LSZH
• Cable Diameter: 2.0 mm x 2 (zipcord style)
• Minimum Bend Radius: 30 mm (installation), 15 mm (operation)
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Standards: ISO/IEC 11801, TIA/EIA-568, RoHS
