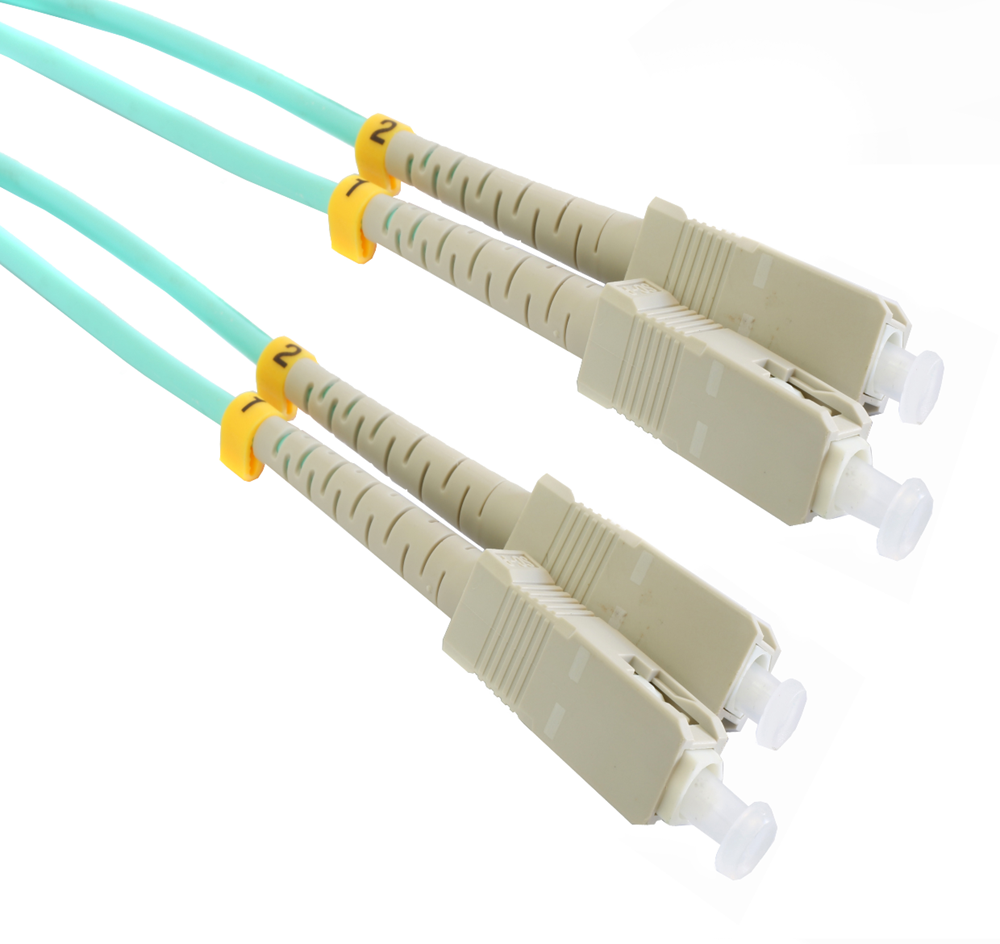

1M SC-SC OM3 MM Duplex Patch Lead | LSZH

The Grove 1M SC-SC OM3 Duplex Patch Lead with LSZH (Low Smoke Zero Halogen) jacket is a high-performance fiber optic cable designed for reliable data transmission in high-speed networks. It is engineered for 10Gbps data rates and optimized for short-range multimode fiber applications. With SC-SC connectors and OM3-grade fiber, this patch lead ensures minimal signal loss and maximum performance. The LSZH jacket enhances safety by reducing toxic smoke emissions in the event of a fire, making it ideal for use in enclosed or sensitive environments.

Key Features

• 1-Meter Length: Compact and perfect for short-distance connections.
• OM3 Multimode Fiber: Supports high-speed 10Gbps data transfer over short distances.
• SC-SC Connectors: Reliable and secure plug-and-play fiber optic connectivity.
• LSZH Jacket: Fire-resistant with low smoke and zero halogen emissions for added safety.
• High-Quality Build: Ensures minimal signal attenuation and long-lasting performance.
• Wide Compatibility: Works seamlessly with OM3-compliant networking systems.

Specifications

• Cable Type: OM3 Duplex Fiber Optic Patch Lead
• Length: 1 meter
• Connector Type: SC-SC (Duplex)
• Fiber Type: Multimode
• Core/Cladding Diameter: 50/125 µm
• Jacket Type: LSZH (Low Smoke Zero Halogen)
• Data Rate: Up to 10Gbps
• Insertion Loss: ≤ 0.3 dB
• Return Loss: ≥ 35 dB
• Operating Temperature: -20°C to 70°C
• Color: Aqua
