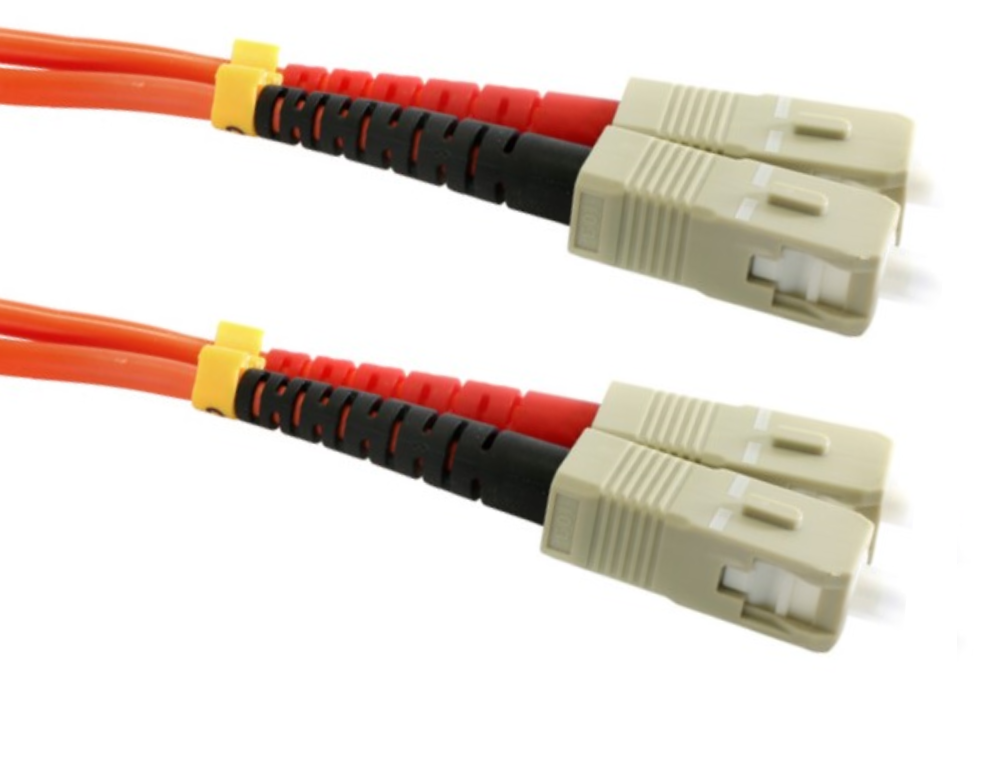

1M SC-SC MM OM1 Duplex Patch Lead

The 1M SC-SC OM1 Duplex Patch Lead is a high-quality multimode fibre optic cable designed for short-distance, high-speed data transmission. Built with 62.5/125µm OM1 fibre and fitted with SC connectors on both ends, it delivers reliable performance with low insertion loss. The duplex configuration enables two-way communication, making it ideal for use in LANs, data centres, and telecommunications environments where consistent and secure connectivity is essential.

Key Features

• 1-metre multimode duplex fibre optic patch lead.
• SC-SC connectors for secure and stable connections.
• OM1 62.5/125µm fibre for short-range transmission.
• Low insertion loss, high return loss.
• Duplex cable for bi-directional communication.
• Durable construction with flexible jacket.

Specifications

• Type: Multimode OM1 duplex patch lead.
• Length: 1m.
• Connector Type: SC to SC (duplex).
• Fibre Size: 62.5/125µm.
• Insertion Loss: ≤0.3dB typical.
• Return Loss: ≥20dB.
• Jacket Material: LSZH (Low Smoke Zero Halogen).
• Colour: Orange.
• Compliance: IEC, TIA/EIA, RoHS.

Applications

• Local area networks (LANs).
• Data centres and enterprise networks.
• Fibre optic patching and equipment interconnects.
• Telecommunications rooms and wiring closets.
• Short-distance, high-bandwidth applications.
