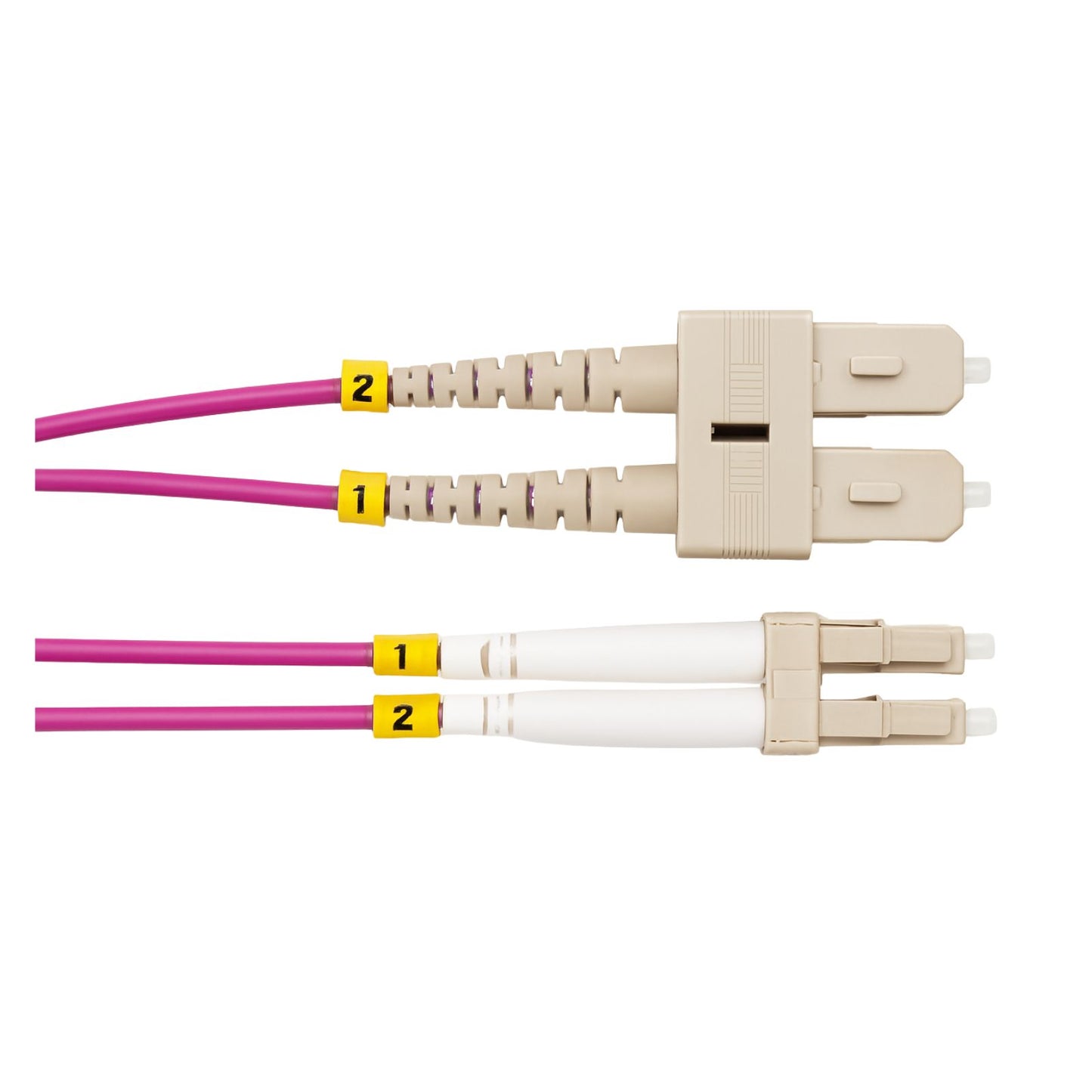

1M SC-LC MM OM4 Duplex Patch Lead | LSZH
1M SC-LC MM OM4 Duplex Patch Lead | LSZH
The SC-LC 1M MM OM4 Duplex Patch Lead provides high-speed, reliable connectivity for short-to-medium distance multimode fibre networks. Built with SC to LC connectors, this OM4 fibre optic cable is engineered for ultra-fast data transfer, supporting 10Gb, 40Gb, and 100Gb Ethernet applications. Its duplex design allows simultaneous bi-directional communication, while the LSZH (Low Smoke Zero Halogen) jacket enhances safety by minimising smoke and toxic emissions in case of fire. At 1 metre, it is ideal for rack-to-rack or patch panel connections in data centres, telecommunications rooms, and enterprise networks.
Key Features:
- OM4 Multimode Fibre: Optimised for high-bandwidth and ultra-fast transmission.
- SC to LC Duplex Connectors: Industry-standard connectivity for MM fibre systems.
- Supports High-Speed Networks: Suitable for 10/40/100Gb Ethernet and beyond.
- Low Insertion Loss: Precision-polished connectors for superior optical performance.
- LSZH Jacket: Reduces smoke and toxic emissions for enhanced fire safety.
- Compact Length (1M): Perfect for short interconnects in racks and cabinets.
- Standards Compliant: Meets IEC, ISO/IEC, and TIA/EIA requirements.
Specifications:
| Specification | Details |
|---|---|
| Fibre Type | Multimode OM4 |
| Connector Type | SC to LC |
| Polish Type | UPC (Ultra Physical Contact) |
| Configuration | Duplex |
| Jacket Material | LSZH (Low Smoke Zero Halogen) |
| Length | 1 metre |
| Insertion Loss | ≤0.3 dB typical |
| Return Loss | ≥20 dB |
| Bandwidth | Up to 4700 MHz·km |
| Ethernet Support | 10Gb, 40Gb, 100Gb |
| Operating Temperature | -20°C to +70°C |
| Compliance Standards | IEC 61754, TIA/EIA 568, ISO/IEC 11801 |
