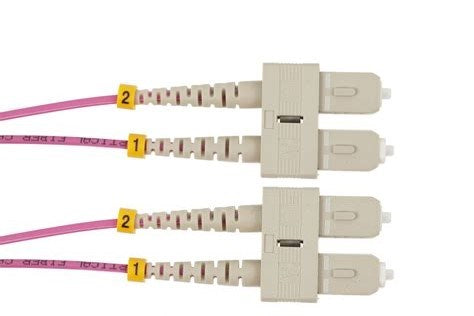

15M SC-SC OM4 MM Duplex Patch Lead | LSZH

The Grove SC-SC 15M MM OM4 Duplex Patch Lead is a high-performance fiber optic cable designed for ultra-fast data transmission in data centers, enterprise networks, and high-bandwidth applications. Constructed with OM4 multimode fiber, this cable supports data rates of up to 100Gbps over short distances, making it ideal for cloud computing, SANs, and high-speed networking.

Featuring SC-SC connectors, this patch lead ensures secure, stable, and low-loss connections. The Low Smoke Zero Halogen (LSZH) jacket enhances safety by minimizing toxic emissions in the event of a fire, making it suitable for enclosed spaces. With a 15-metre length, this cable provides flexibility for structured cabling systems and long-distance connections within network environments.

Key Features:

• 15-metre duplex fiber optic patch lead for long-distance, high-speed data transmission
• OM4 multimode fiber for enhanced performance and extended reach
• SC-SC connectors for secure and reliable connections
• LSZH (Low Smoke Zero Halogen) jacket for fire safety and reduced toxic emissions
• Supports data rates up to 100Gbps over short distances
• Ideal for data centers, cloud computing, SANs, and enterprise networks
• Low insertion loss and high return loss for optimal signal integrity

Specifications:

• Cable Type: Fiber optic patch lead
• Fiber Mode: OM4 Multimode
• Connector Type: SC-SC (Standard Connector)
• Cable Length: 15 metres
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Wavelength: 850 nm (primary)
• Insertion Loss: ≤ 0.3 dB
• Return Loss: ≥ 35 dB
• Operating Temperature: -20°C to 70°C
• Storage Temperature: -40°C to 85°C
• Application: Data centers, enterprise networks, SANs, cloud computing, LANs
