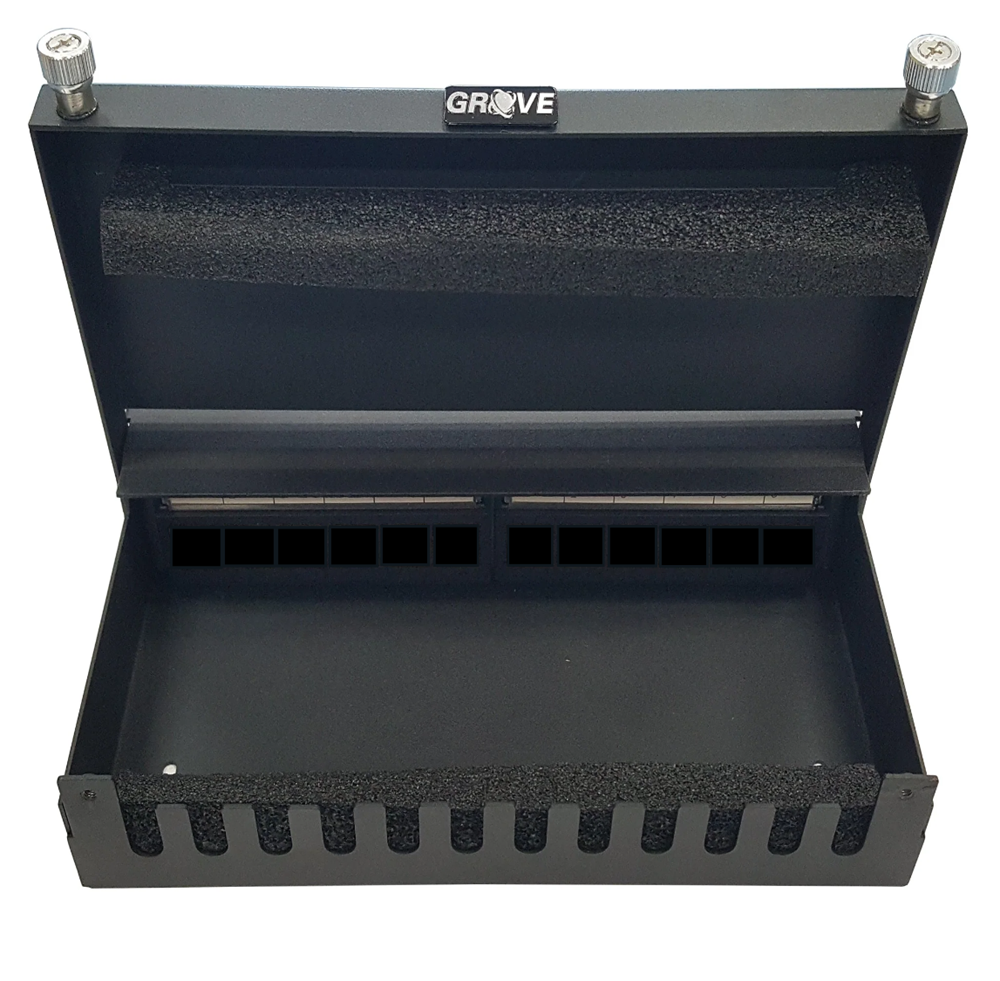

12 Port Consolidation Point

The Grove 12 Port Consolidation Point is designed to provide flexible and efficient cable management within structured cabling systems. Ideal for open office environments and network distribution points, this unit allows for easy consolidation, reconfiguration, and maintenance of copper cabling installations. Constructed with high-quality materials, it ensures durability, stability, and performance while maintaining compliance with international cabling standards.

Key Features

• 12-port capacity for efficient cable consolidation
• Compatible with Cat5e, Cat6, and Cat6A copper cabling
• Compact and robust metal housing for long-term durability
• Designed for underfloor, ceiling, or wall-mount installations
• Facilitates flexible work area changes and reconfigurations
• Easy access for testing, maintenance, and upgrades
• Standards-compliant design for reliable performance

Specifications

• Ports: 12
• Compatibility: Cat5e, Cat6, Cat6A copper cabling
• Housing Material: Powder-coated steel
• Mounting Options: Underfloor, ceiling, or wall-mounted
• Dimensions: 250 mm (W) × 160 mm (D) × 45 mm (H)
• Weight: Approx. 1.2 kg
• Standards Compliance: ISO/IEC 11801, ANSI/TIA-568

Applications

• Open-plan offices requiring frequent reconfiguration
• Commercial buildings with underfloor or ceiling distribution systems
• Structured cabling consolidation in enterprise networks
• Telecommunications rooms and equipment distribution areas
• Ideal for environments where flexible network expansion is needed
